Sweepers

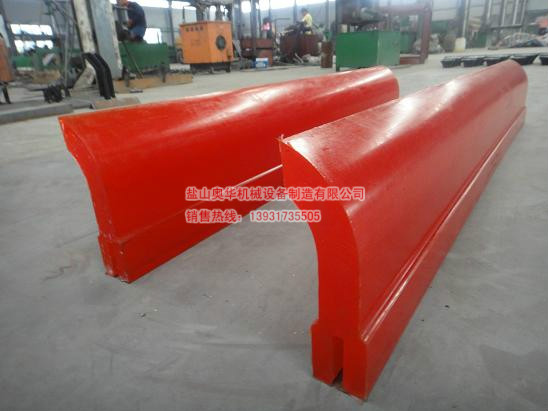

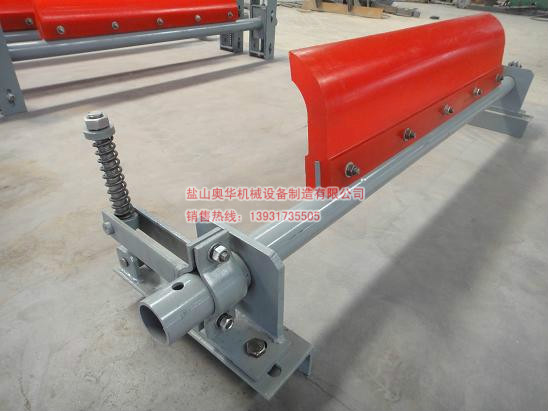

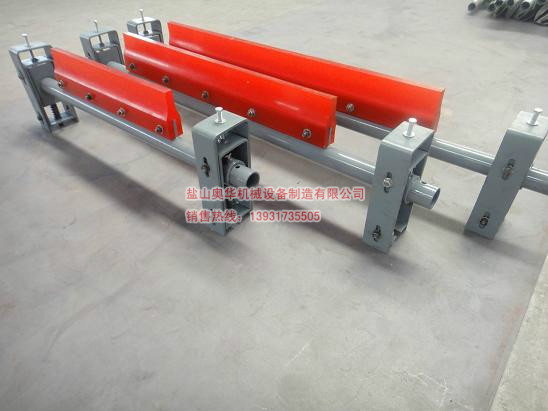

First polyurethane sweeper

The scope of adaptation of polyurethane sweepers:

1, the applicable bandwidth: B = 500-2200 (mm)

2, to adapt to belt speed: ≤ 3.5 (m / s)

3, the material humidity: ≤ 15%

4, the working temperature: -40 ℃ -90 ℃

order

The first polyurethane cleaner is installed on the smooth surface of the conveyor belt in the range of 15 ° -30 ° from the transverse center of the head roller. It is the replacement product of the existing alloy cleaner on belt conveyors. The scraper selected polymer polyurethane material, wear-resistant, anti-corrosion, anti-fracture, hydrolysis resistance, no damage to tape, extend the tape life. The scraper has a spring tension adjuster, when the scraper wear or belt beat will automatically follow the blade surface, compensation, to ensure that the blade surface and close contact with the belt in order to achieve good scraping effect.
